What Is a Milling Machine and What Is It Used For?

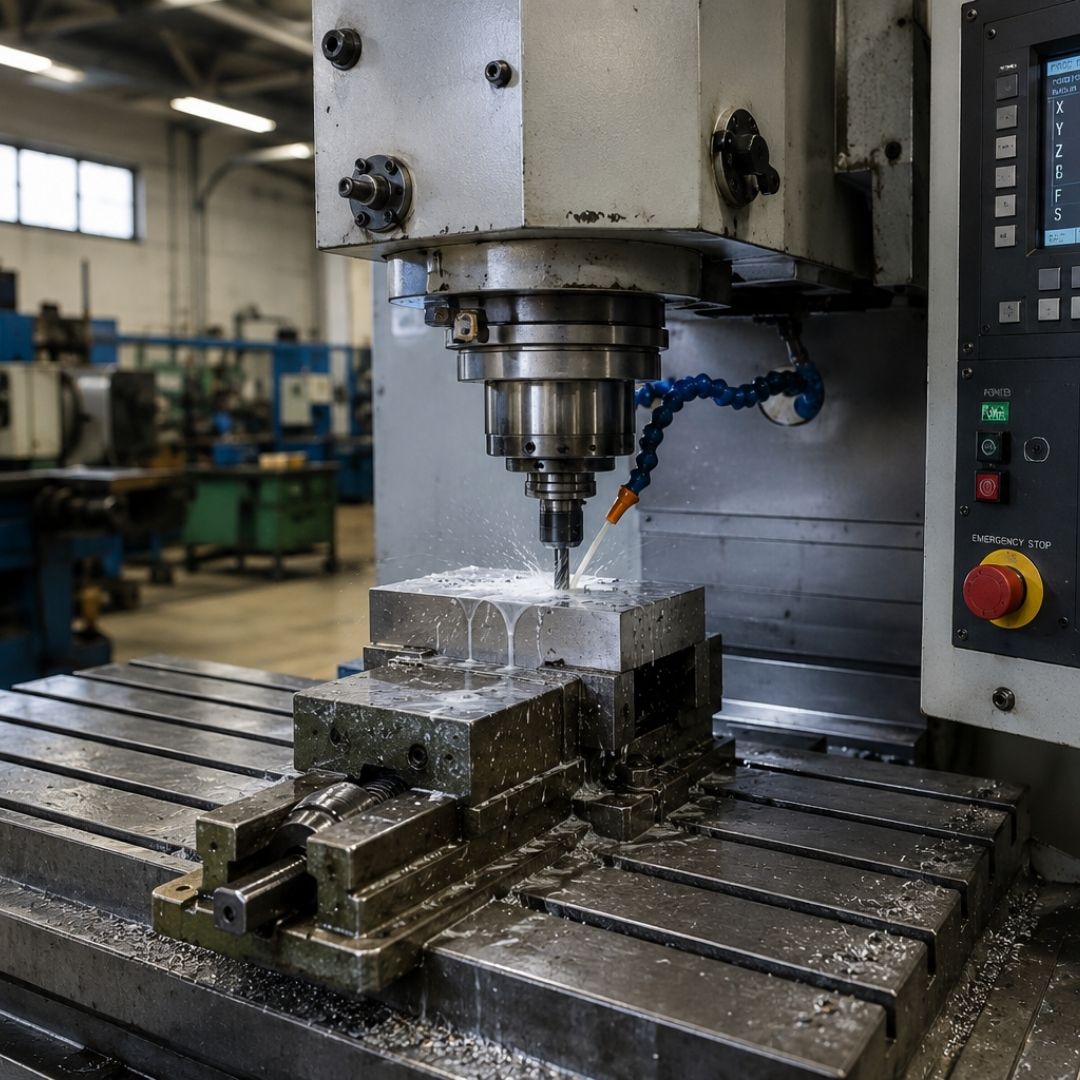

A milling machine is a machine tool used to machine materials, mainly metals, but also engineering plastics and other industrial materials. It operates using a rotating cutting tool called a milling cutter. Unlike other machining processes where the workpiece rotates, here the tool performs the rotation while the workpiece moves along one or several axes.

This combined movement makes it possible to produce flat surfaces, grooves, cavities, complex contours, and highly precise mechanical parts with excellent repeatability. Today, the milling machine is one of the most important types of industrial machines used in mechanical workshops, machining centers, and modern production lines.

Definition of a Milling Machine

A milling machine is a machine that removes material from a workpiece using a rotating multi-point cutting tool. During machining, the workpiece or the table moves in a controlled manner in order to give the material a precise shape.

Milling is an extremely versatile process suitable for both roughing and finishing technical parts. Thanks to the evolution of CNC numerical control systems, modern milling machines can produce complex parts with very high precision.

What Is a Milling Machine Used For?

Machining Mechanical Parts

The milling machine makes it possible to transform a raw workpiece into a functional component by performing operations such as facing, drilling, grooving, threading, boring, or contouring.

Industrial Manufacturing

In industry, it is used to produce parts in series, manufacture molds, tooling, precision components, or mechanical structures intended for different sectors such as automotive, aerospace, energy, plastics processing, or general mechanics.

Maintenance and Repair

Milling machines are also widely used in industrial maintenance workshops to repair, adjust, or modify existing mechanical parts.

How Does a Milling Machine Work?

Cutting Principle

The milling cutter, composed of several cutting teeth, rotates at high speed and removes small amounts of material with each pass. This process is called chip removal machining.

Axis Movement

The workpiece is fixed on a movable table that travels along the X, Y, and Z axes. Some advanced machines may also include additional rotary axes in order to machine complex geometries.

This combination of movements makes it possible to create a wide variety of precise shapes with a high level of repeatability.

Precision Control

Precision depends on several factors: machine rigidity, guideway quality, spindle balancing, cutting parameters, and thermal stability.

In modern workshops, milling is often associated with the operation of industrial lathes, because these two processes complement each other in the machining of complex mechanical parts.

Different Types of Milling Machines

Conventional Milling Machine

The conventional milling machine is a manual machine used for simple jobs, adjustments, maintenance, or small production runs. It is still very common in general mechanical workshops.

Vertical Milling Machine

The spindle is positioned vertically. This type of milling machine is highly versatile and suitable for most common workshop operations.

Horizontal Milling Machine

The horizontal milling machine is used for operations requiring better chip evacuation and high rigidity when machining heavy parts.

Universal Milling Machine

It offers great flexibility thanks to its orientation capabilities and accessories allowing different types of machining on the same machine.

CNC Milling Machine

The CNC milling machine allows automated, precise, and repeatable operations. It is ideal for mass production, complex machining, and parts requiring very high precision.

Difference Between Milling and Other Machining Processes

Milling vs Turning

In turning, the workpiece rotates while the tool remains relatively fixed. In milling, the tool rotates. Turning is particularly suitable for cylindrical parts, while milling allows the production of more complex shapes.

Milling vs Drilling

Drilling is mainly used to create holes, whereas milling allows a much wider range of operations: grooves, flat surfaces, profiles, pockets, and contours.

Milling vs Grinding

Milling is used for roughing and general machining operations, while grinding is reserved for extremely high precision and advanced surface finishing.

In industrial finishing processes, industrial grinding machines and precision finishing play an essential role in achieving very tight tolerances after milling operations.

Main Milling Operations

Facing

Facing makes it possible to obtain a flat and regular surface used as a reference or assembly area.

Grooving

Grooving consists of creating channels, grooves, or slots in a mechanical part.

Contouring

Contouring allows the creation of complex shapes, technical profiles, and cavities.

Boring

Boring is used to precisely adjust the internal diameters of mechanical parts.

3D Machining

Modern CNC machining centers also make it possible to machine complex three-dimensional shapes intended for molds, dies, or technical components.

Cutting Parameters in Milling

Cutting Speed

Cutting speed depends on the machined material, the type of milling cutter, and the tool coating. Incorrect speed can lead to premature wear or poor surface finish.

Feed Rate

The feed rate corresponds to the movement speed of the workpiece or the table. It directly influences surface quality, machining time, and productivity.

Depth of Cut

The depth of cut determines the amount of material removed during each pass of the milling cutter.

Lubrication and Cooling

Cooling helps limit high temperatures, improve surface finish, and increase the lifespan of cutting tools.

How to Properly Use a Milling Machine

Workpiece Preparation

The workpiece must be properly clamped in order to avoid any movement during machining.

Tool Selection

The choice of milling cutter depends on the material, the geometry to be produced, the type of operation, and the required finishing level.

Parameter Control

Rotation speed, feed rate, and depth of cut must be adjusted properly in order to avoid vibrations, tool breakage, or poor surface quality.

Safety

The use of personal protective equipment is essential. Contact with rotating tools, chips, and moving machine areas must also be avoided.

Market for Used Industrial Milling Machines

The used machinery market represents an attractive solution for companies wishing to reduce investment costs while accessing high-performance machining equipment.

Workshops looking for used industrial milling machines can compare different models according to capacity, automation level, precision, and working dimensions.

More broadly, used machine tools make it possible to equip a workshop with complementary solutions such as lathes, grinding machines, machining centers, or industrial drilling machines.

Conclusion

The milling machine is an essential machine in modern machining. Thanks to its versatility, it makes it possible to produce a wide variety of parts with precision, whether in workshops, maintenance operations, or industrial production.

The evolution of CNC technologies has strengthened its role in modern manufacturing systems by enabling advanced automation, better repeatability, and higher productivity. Combined with other processes such as turning or grinding, the milling machine remains one of the fundamental pillars of industrial machining workshops.
