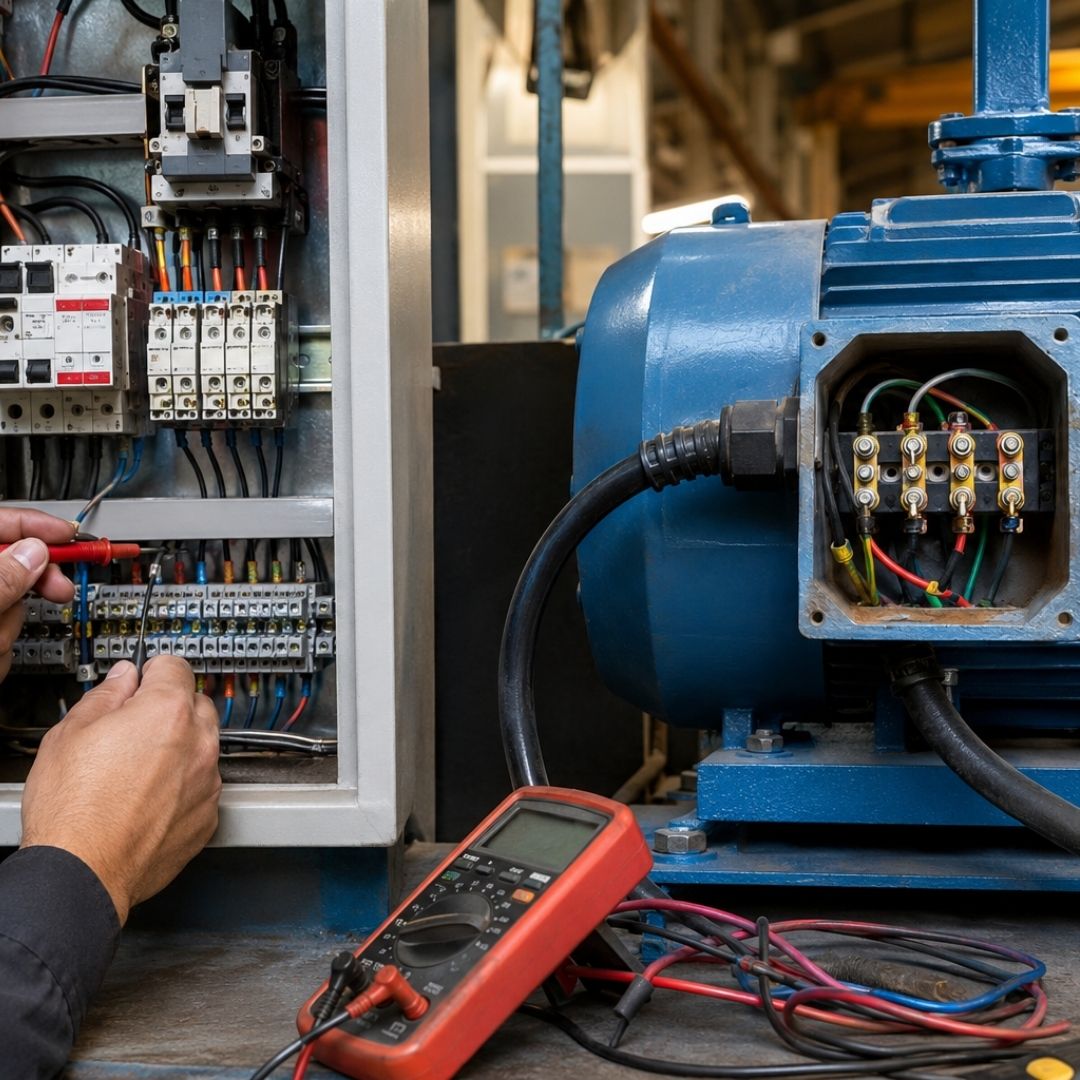

Introduction: Connecting a Three-Phase Motor in Industrial Environments
Connecting a three-phase motor is a common operation in industrial environments such as extrusion lines, recycling installations, conveying systems, pumping stations, ventilation units, and auxiliary equipment. These motors are present in a wide variety of machines, ranging from simple electromechanical systems to continuous industrial production lines.
In industries related to thermoplastics and industrial processing, an incorrect connection may lead to production stoppages, motor overheating, torque loss, or costly breakdowns. Understanding connection principles, protection systems, and control methods is therefore essential for ensuring installation safety and operational reliability.
Preparation Before Any Electrical Connection
Check the Motor Nameplate
The motor nameplate is the first element that must be checked before any connection. It provides essential information such as rated voltage, power, frequency, current, rotational speed, and the possible winding configuration.
Values such as 230/400 V or 400/690 V are not simple general indications. They precisely determine whether the motor must be connected in star or delta configuration depending on the available electrical supply.
Verify the Available Voltage
In industrial installations, the actual voltage must always be measured before connection. Although 400 V three-phase is the most common industrial voltage in Europe, some older systems may still operate at 380 V, 220 V, or 230 V three-phase.
This verification helps prevent wiring errors and confirms compatibility between the motor, the electrical network, and the installed protection systems.
Consider the Industrial Application
Two three-phase motors may appear similar, yet their behavior differs depending on their internal design and intended use. A motor designed for a pump does not operate under the same conditions as a motor used for an extruder, shredder, conveyor, or industrial fan.
Within the framework of industrial machine maintenance involving three-phase motors, it is important to analyze not only the motor itself, but also the driven load, the starting mode, and the operating conditions.
Voltages and Electrical Configurations
Operation with 400 V Three-Phase
400 V three-phase is the most common industrial voltage in Europe. A 230/400 V motor is generally connected in star configuration when supplied by a 400 V network.
This configuration applies the correct voltage to the windings and ensures stable, efficient, and durable operation for most continuous industrial applications.
Operation with 230 V Three-Phase
In a 230 V three-phase installation, a 230/400 V motor must normally be connected in delta configuration. If connected in star on this type of network, the motor may lack torque, fail to start correctly, or overheat abnormally.
Dual-Voltage Motors
Motors rated 230/400 V or 400/690 V provide installation flexibility, provided that the winding configuration specified by the manufacturer is strictly respected.
An incorrect configuration may lead to excessive current consumption, reduced performance, or irreversible winding damage.
Special Voltage Cases
Some older or imported machines may operate at uncommon voltages such as 220 V, 380 V, 440 V, or 460 V. In these situations, a complete technical verification is essential before energizing the motor.
Terminals and Configurations of Three-Phase Motors
3-Terminal Motors
Three-terminal motors are generally factory-configured for a specific voltage. They do not allow easy modification of the winding configuration because the internal connections are inaccessible from the terminal box.
6-Terminal Motors
Six-terminal motors are the most common in industrial applications. They allow star or delta connection through removable copper links installed inside the terminal box.
This configuration is especially useful when replacing motors or adapting equipment to a different voltage supply.
9-Terminal or 12-Terminal Motors
Motors with 9 or 12 terminals offer more complex connection possibilities. They may be used for dual-voltage systems, specific starting methods, or particular industrial applications.
Motor Without a Nameplate
When a motor no longer has a readable nameplate, energizing it without prior analysis becomes dangerous. The windings must first be identified, continuity measured, and insulation tested before any connection attempt.
Connection Methods in Industrial Installations
Direct Power Supply
Direct-on-line connection is mainly used for low-power motors or simple applications. It must always be accompanied by suitable protection systems such as a motor circuit breaker, thermal overload relay, and proper grounding.
Contactors and Control Circuits
The use of contactors allows remote motor control, integration of emergency stops, and improved operational safety.
In automated production lines, motors are often controlled by an industrial programmable logic controller for motor automation. The PLC coordinates starts, stops, safety functions, and production sequences.
Reversing the Direction of Rotation
To reverse the rotation direction of a three-phase motor, it is sufficient to interchange two supply phases. This operation must always be carried out with the power disconnected and then verified through a controlled start-up.
Motor Starting Systems
Direct-On-Line Starting
Direct-on-line starting is simple, economical, and effective. It consists of supplying the motor directly at full voltage. It is suitable for low-power motors or applications capable of tolerating high starting current.
Star-Delta Starting
Star-delta starting reduces the starting current by first launching the motor in star configuration and then switching it to delta once the speed becomes stable.
This system is used when both the motor and the driven load allow this type of transition. It remains common in many industrial installations, although frequency inverters now provide a more flexible solution.
Limitations of Traditional Starting Systems
Traditional starting systems are robust, but they offer limited control over speed, torque, and acceleration ramps. For applications requiring precise regulation, a frequency inverter is generally more appropriate.
Using a Frequency Inverter
Main Advantages
The frequency inverter makes it possible to control motor speed, torque, acceleration and deceleration ramps, as well as energy consumption. It is especially useful on conveyors, extruders, pumps, fans, and dosing systems.
Important Technical Points
Before installing a frequency inverter, the nominal motor current, insulation quality, cooling system, and compatibility with the intended operating frequency must all be verified.
The sensors used in industrial three-phase systems also play an important role in monitoring temperature, speed, pressure, or equipment position.
Critical Parameters
Acceleration ramps, deceleration ramps, maximum frequency, thermal protection, and current limits must be correctly configured. Incorrect settings may reduce motor lifespan or generate repeated tripping.
Using a Three-Phase Motor with Single-Phase Supply
Application Cases
When three-phase power is unavailable, it may become necessary to operate a three-phase motor from a single-phase installation. This situation is sometimes encountered in workshops, small production units, or maintenance facilities.
Recommended Solution
The most reliable solution consists of using a frequency inverter with single-phase input and three-phase output. This configuration supplies the motor correctly while maintaining proper speed and torque control.
Limitations of Capacitor Systems
Capacitor-based assemblies may work for very simple applications, but they are generally not recommended in industrial environments. They often create power imbalance, torque loss, and motor overheating.
Electrical Protection and Safety
Motor Circuit Breaker
The motor circuit breaker protects against short circuits and overloads. It must be correctly sized according to the nominal current indicated on the motor nameplate.
Thermal Overload Relay
The thermal overload relay protects the motor against prolonged overheating. It is essential when the motor operates continuously or under demanding conditions.
Grounding
Grounding is essential for protecting both personnel and equipment. It must be verified before commissioning, especially on older or relocated machines.
These operations form part of industrial electrical maintenance procedures, including diagnostics, protection verification, connection inspection, and failure prevention.
Checks Before Commissioning
Initial Inspection
Before start-up, all connections must be checked: terminal tightening, bridge position, grounding continuity, protection settings, and the absence of visible defects.
No-Load Start-Up
The first start-up should ideally be carried out without load. This allows verification of the rotation direction, vibrations, unusual noises, and the overall motor behavior.
Operation Under Load
Once the no-load test has been validated, the motor can be tested under real operating conditions. The absorbed current, temperature, available torque, and operational stability must then be monitored carefully.
Warning Signs
Unusual noises, overheating, varnish odors, repeated tripping, or excessive power consumption indicate a problem that must be corrected immediately.
Choosing or Replacing an Industrial Three-Phase Motor
When a motor must be replaced, it is important to compare power, speed, voltage, mounting type, protection rating, duty cycle, and mechanical dimensions.
For recycling, extrusion, conveying, or industrial processing applications, industrial motors and gearmotors must be selected according to the actual load, required torque, and production conditions.
Conclusion
Connecting a three-phase motor requires a proper understanding of the available voltage, winding configuration, starting method, and electrical protection systems. Correct installation guarantees safety, performance, and durability of industrial equipment.
In continuous production environments such as extrusion, recycling, or material conveying, reliable motor connection reduces unexpected downtime, improves machine availability, and extends the lifespan of electromechanical components.
