How to Connect a Three-Phase Motor in Industrial Installations

Connecting a three-phase motor is a common operation in industrial environments such as extrusion lines, recycling plants, conveying systems, pumping stations, ventilation units, and processing machinery. These motors are used in a wide range of electromechanical equipment, from auxiliary systems to highly demanding production machines.

A correct electrical connection is essential to guarantee operator safety, protect equipment, and ensure production continuity. Before any intervention, it is necessary to identify the motor type, the available voltage, the starting method, and the specific constraints related to the industrial application.

Preliminary Checks Before Connecting the Motor

Read the Motor Nameplate

The motor nameplate is the first element that must be checked. It generally indicates the rated voltage, current, power, frequency, service factor, efficiency, and possible winding configurations.

Indications such as 230/400 V or 400/690 V directly define the possible connection method. Incorrect interpretation may lead to torque loss, overheating, protection tripping, or motor damage.

Identify the Actual Supply Voltage

In industrial environments, the available voltage should never be assumed without measurement. It is common to find 400 V three-phase networks, older 380 V installations, as well as certain 230 V three-phase systems or special voltages on imported machinery.

Measuring the actual voltage between phases confirms compatibility between the motor and the electrical installation.

Adapt the Motor to Its Industrial Application

Two three-phase motors with equivalent power ratings may behave differently depending on their design, rotational speed, starting torque, or intended duty cycle.

A motor used for a pump does not operate under the same constraints as a motor installed on an extruder, shredder, conveyor, or industrial fan. The connection method must therefore remain consistent with the real operating conditions of the machine.

For industrial production applications, it is often advisable to rely on industrial three-phase motors and gearmotors adapted to the mechanical and electrical requirements of each installation.

Supply Voltages and Possible Configurations

400 V Three-Phase Supply

The 400 V three-phase network is the most common electrical supply in European industry. On this type of installation, a 230/400 V motor is generally connected in star configuration.

This configuration correctly supplies each winding and ensures stable operation for continuous industrial applications.

230 V Three-Phase Supply

In certain installations, particularly older or lower-power systems, 230 V three-phase may still be present. In this case, a compatible 230/400 V motor generally needs to be connected in delta configuration.

An incorrect choice between star and delta may cause major torque loss, abnormal current consumption, or excessive overheating.

Dual-Voltage Motors

Motors rated 230/400 V and 400/690 V allow several possible configurations, provided that the manufacturer’s connection diagram is strictly respected.

A 400/690 V motor is not designed to operate directly on a 230 V three-phase network. In such cases, complete technical verification is required before energizing the system.

Special Voltage Cases

Some older or imported industrial machines may operate with specific voltages such as 220 V, 440 V, or other less common values. These situations require prior analysis of the motor, the electrical cabinet, and the installed protection systems.

Motor Terminals and Connection Types

3-Terminal Motors

Three-terminal motors are generally factory-configured for a specific voltage. The user cannot easily modify the star or delta connection directly from the terminal box.

6-Terminal Motors

Six-terminal motors are the most common in industrial environments. They allow star or delta connection using bridging bars inside the terminal box.

The position of the bridging bars must strictly correspond to the motor diagram. Incorrect bridging may damage the windings or create unstable operation.

9-Terminal or 12-Terminal Motors

Motors with 9 or 12 terminals offer more complex wiring possibilities. They are used for certain dual-voltage configurations, special starting methods, or specific industrial applications.

In such cases, consulting the manufacturer’s technical documentation or involving a qualified specialist is strongly recommended.

Motor Without a Nameplate

If the nameplate is missing, unreadable, or incomplete, the motor must never be powered directly. Electrical measurements, winding identification, and insulation testing are required before any connection attempt.

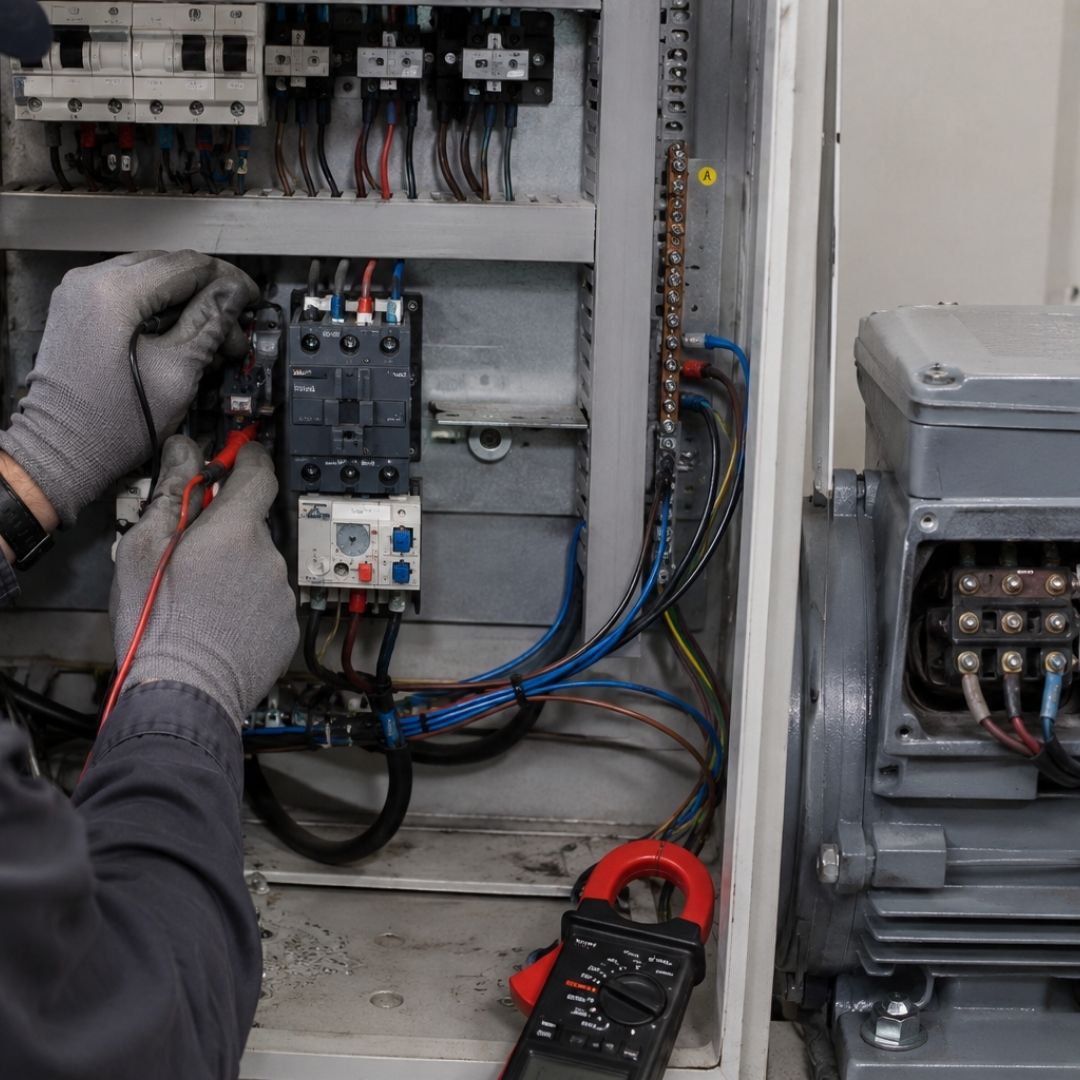

Connection Methods Inside Industrial Electrical Cabinets

Direct Power Connection

Direct connection consists of wiring the motor directly to the electrical supply through suitable protection devices. This solution is generally reserved for low-power motors or simple applications.

It must always include protection against short circuits, overloads, and electrical faults.

Contactor and Start/Stop Control

The contactor allows remote motor control and integration of safety functions, emergency stops, or automation systems.

In modern installations, motor control is often linked to industrial motor automation and control systems, particularly through programmable logic controllers.

Reversing the Rotation Direction

The rotation direction of a three-phase motor depends on the phase sequence. Reversing the direction generally consists of interchanging two phases, provided that the operation is carried out with the power disconnected and according to electrical safety procedures.

This verification is especially important on conveyors, pumps, industrial fans, screw systems, and extruders, where an incorrect rotation direction may cause mechanical damage or production defects.

Three-Phase Motor Starting Systems

Direct-On-Line Starting

Direct-on-line starting is the simplest method. The motor immediately receives its rated voltage at startup. This solution is mainly suitable for low-power motors or applications where high starting current is not problematic.

Star-Delta Starting

Star-delta starting reduces startup current. The motor first starts in star configuration and then switches to delta once the rotation becomes stable.

This method is used on compatible motors, but it requires correct wiring, a suitable motor, and properly adjusted timing.

Limitations of Star-Delta Starting

Star-delta systems are increasingly replaced by more modern solutions such as soft starters or frequency inverters. These devices provide better control over torque, speed, and acceleration ramps.

Using Frequency Inverters

Advantages of Frequency Inverters

Frequency inverters make it possible to control motor speed, adjust torque, reduce mechanical shocks, and optimize energy consumption.

They are particularly useful on extruders, conveyors, pumps, fans, shredders, and dosing systems where the speed must adapt to production conditions.

Electrical Precautions

Before using a frequency inverter, the compatibility of the motor, its insulation, cooling system, and cable length must be verified. Some older motors may require additional precautions.

It is also important to ensure that electrical protections, grounding systems, and safety devices are correctly sized.

Important Parameters

The inverter parameters directly influence motor lifespan. Acceleration ramps, deceleration ramps, frequency limits, thermal protection, and rated current settings must match the motor nameplate specifications.

Supplying a Three-Phase Motor from a Single-Phase Installation

When This Solution Is Necessary

In certain installations, no three-phase supply is available. It may therefore become necessary to operate a three-phase motor from a single-phase source.

Most Reliable Solution

The most common solution consists of using a frequency inverter with single-phase input and three-phase output. This option provides more stable power supply and better motor control.

Limitations of Phase Converters

Phase converters may be used in certain situations, but they often present limitations regarding stability, efficiency, and available torque.

Capacitors

Using capacitors to operate a three-phase motor on single-phase supply remains a limited solution. It is generally unsuitable for demanding industrial environments or machines requiring reliable torque.

Motor Protection and Electrical Safety

Motor Circuit Breaker

The motor circuit breaker protects against overloads and short circuits. Its setting must correspond to the rated current indicated on the motor nameplate.

Thermal Overload Relay

The thermal overload relay protects the motor against prolonged overload conditions. It helps prevent winding damage caused by excessive overheating.

Grounding

Grounding is essential for personnel safety and equipment protection. It must be correctly connected to the motor frame and regularly checked.

Electrical safety forms an integral part of electrical safety in industrial installations, together with mechanical protections, emergency stop systems, and lockout procedures.

Sensors and Monitoring Systems

In automated installations, motors may be monitored using temperature probes, vibration sensors, position detectors, or current sensors. These devices help anticipate failures and reduce unexpected downtime.

The sensors used in industrial electrical installations play an important role in preventive maintenance and production line reliability.

Checks Before Commissioning

Electrical Checks

Before energizing the system, all connections must be verified: terminal tightening, bridging bars, protection systems, grounding continuity, insulation, and wiring conformity.

No-Load Startup

The first startup should ideally be performed without load whenever possible. This allows verification of rotation direction, abnormal noises, vibrations, and the overall electrical behavior of the motor.

Operation Under Load

After successful no-load startup, the motor should be tested under real operating conditions. The absorbed current, temperature, vibrations, and operational stability must then be monitored carefully.

Warning Signs

Excessive overheating, frequent tripping, unusual noises, burning smells, or power loss should always be taken seriously. These signs may indicate wiring problems, overloads, insulation faults, or incorrect sizing.

Maintenance of Motors and Industrial Equipment

The connection of a three-phase motor should not be considered an isolated operation. It forms part of a larger framework involving electrical, mechanical, and automation maintenance of the machine.

An effective industrial machine and motor maintenance program helps extend equipment lifespan, improve safety, and reduce production downtime.

Regular inspections should include connection tightening, bearing condition, ventilation systems, electrical protections, cables, sensors, and control components.
